HOMAG BF 20

Flush milling unit

Designation for a pre-milling aggregate on edgebanders of the manufacturer HOMAG. It consists of 2 motors working in up-cut.

  • 2 motors one upon the other, each with 0.55 kW, 200 Hz, 12000 rpm
  • manual lateral movement
  • motors with quick-change- plug connections
  • height adjustment with the upper pressure
  • edge thickness max. 6 mm
  • workpiece thickness 60 mm
  • swivel range +/- 1 degree
  • tool diameter 70 x 25 mm with HSK25
  • electronic frequency converter with motor brake function

Images

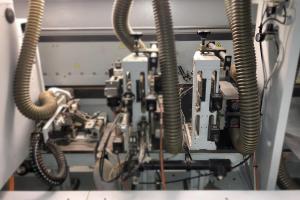

HOMAG BF 20
HOMAG, 2011
